DRIVER UNITS

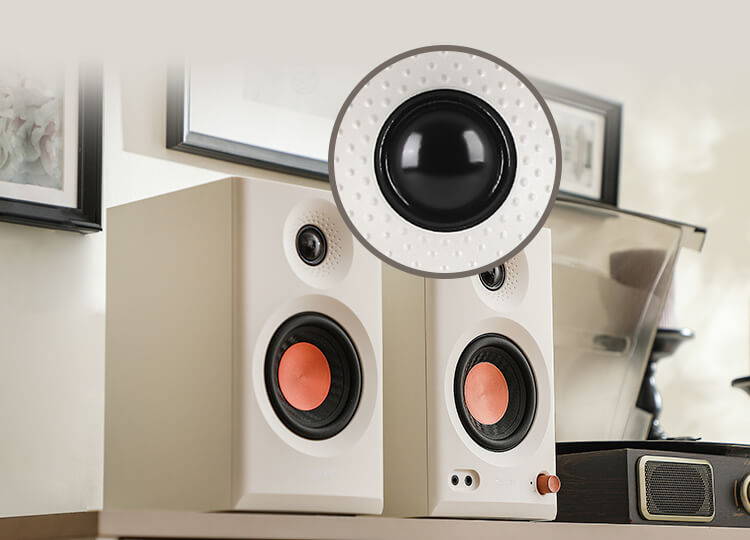

• 3.5" mid-low drivers, 1" silk dome tweeters

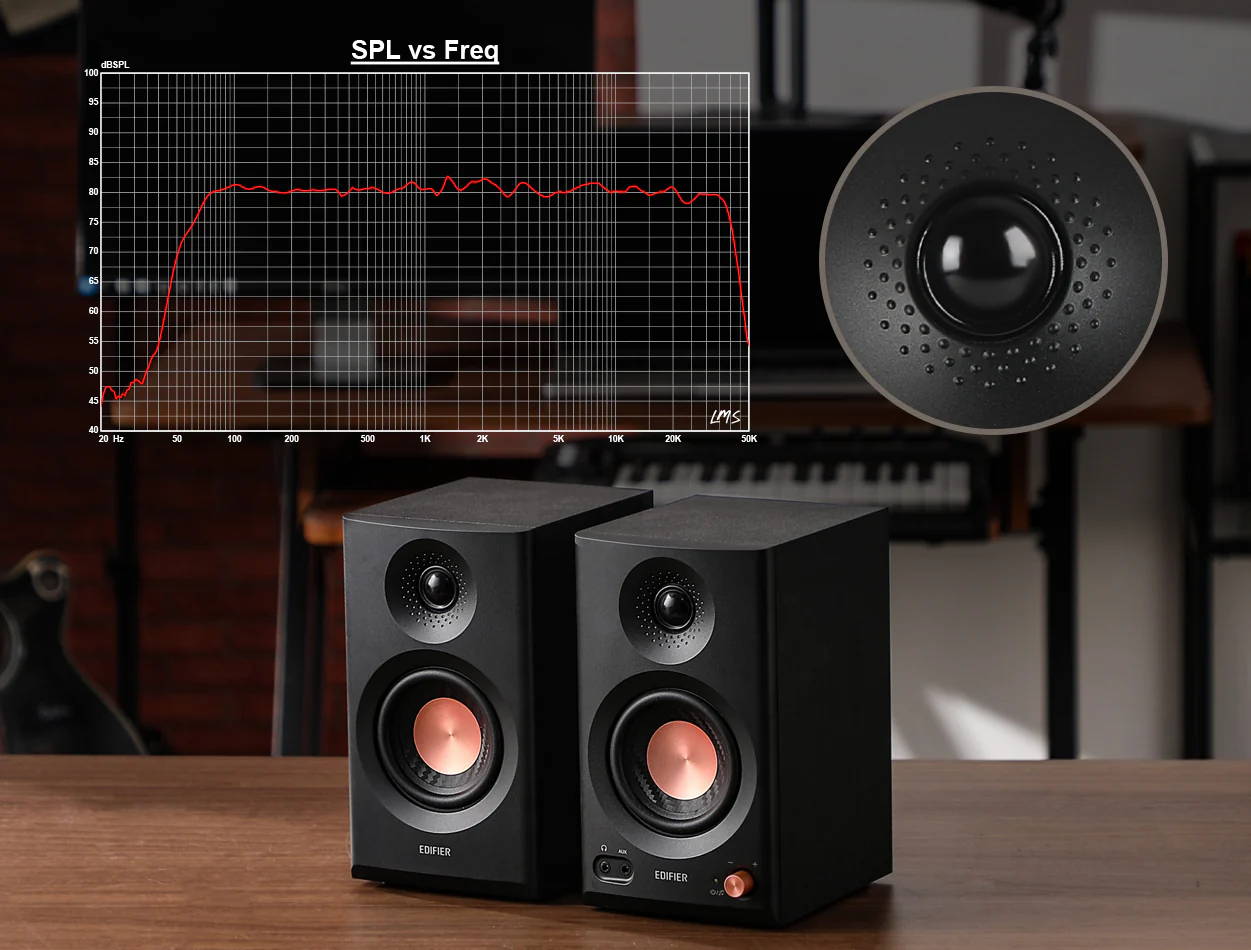

FREQUENCY RESPONSE
• 52Hz-40kHz
SIGNAL-TO-NOISE RATIO
• ≥85dBA
Sound Pressure Level (Max.):
• 92.5dB @1 meter

SOUND
• 3.5" mid-low drivers, 1" silk dome tweeters
• 52Hz-40kHz
• ≥85dBA
• 92.5dB @1 meter
DESIGN
• 125.5mm x 220mm x 185mm (Active speaker)
125.5mm x 220mm x 176mm (Passive speaker)
• 3.85kg
POWER
• RMS 18W + 18W

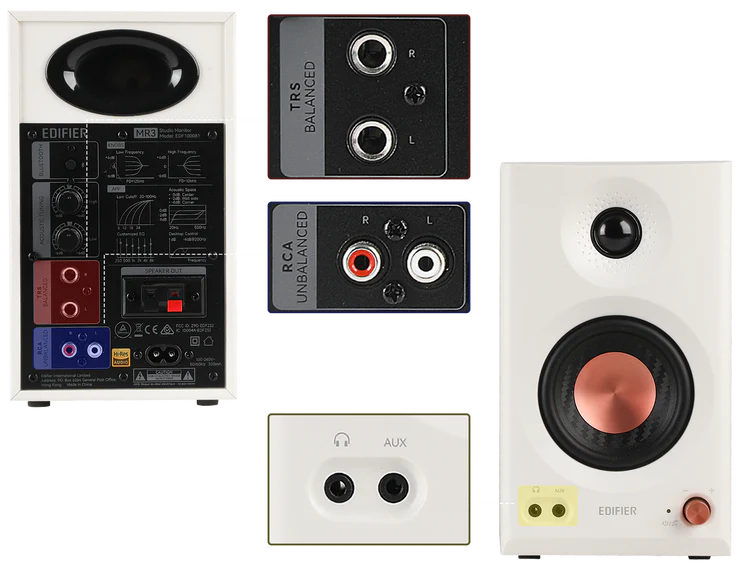

CONNECTIVITY
• Balanced 1/4-inch TRS,
Unbalanced RCA,
3.5mm AUX,
Bluetooth
• 1/8-inch stereo
• V5.4
• SBC
• TRS: 1228 ± 100mV (+4dBu)
• RCA: 775 ± 50mV
• AUX: 775 ± 50mV
• 800 ± 50mFFS
WHAT'S INSIDE THE BOX
• Passive speaker x 1
• Active speaker x 1
• Power cable x 1
• Speaker connecting cable x 1
• 3.5mm-to-RCA audio cable x 1
• 3.5mm-to-3.5mm audio cable x 1
• Quick start guide x 1
• Important safety instructions x 1
